XMen shown a little love

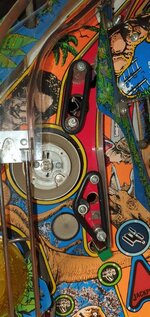

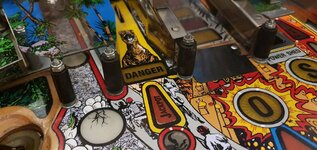

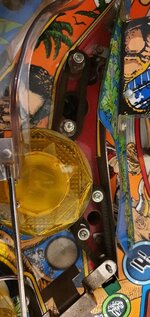

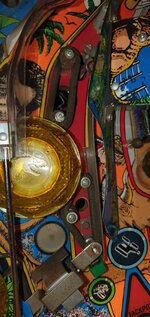

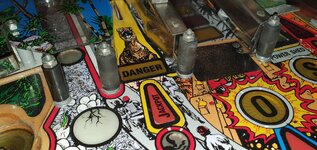

Gave XM a little makeover with a set of extended protectors and clear inlanes.
Gave XM a little makeover with a set of extended protectors and clear inlanes.
Pinball info
Register a free account today to become a member! Once signed in, you'll be able to participate on this site by adding your own topics and posts, as well as connect with other members through your own private inbox!
Today I worked on......
- Thread starter kevlar
- Start date
Added a sub filter to MMR LE with the original speaker still fitted, with the new software update you can balance the backbox and cab speaker which saves me putting a level control in.
It has improved it but had to balance out the bb speakers to about -100 for the cab speaker to be heard. Just crank up normal volume and all good.
Sounds clearer so cab speaker must have been interfering as bb speakers are still original.
Will fit another proper 6.5” bass speaker and see how much it can be improved, don’t fancy ripping the baffle off to fit an 8” if I don’t have to.
It has improved it but had to balance out the bb speakers to about -100 for the cab speaker to be heard. Just crank up normal volume and all good.
Sounds clearer so cab speaker must have been interfering as bb speakers are still original.
Will fit another proper 6.5” bass speaker and see how much it can be improved, don’t fancy ripping the baffle off to fit an 8” if I don’t have to.
Had an 8 ohm Kevlar speaker I took out of my old BSD to try out, would get more output with a 4 ohm but this was free!
Just fitted in under the trolls and sounds pretty good, the arrow at the end of the game has some nice sub bass which I never heard before.
No need for an 8” and ripping the baffle out
BB speakers next but they don’t sound too bad now actually!
Just fitted in under the trolls and sounds pretty good, the arrow at the end of the game has some nice sub bass which I never heard before.
No need for an 8” and ripping the baffle out
BB speakers next but they don’t sound too bad now actually!
Attachments
TZ, my last problem that has been giving grief since I bought it has been the usual powerball proximity sensor set up for the trough.
The coil is a bit beat up but it was sensing all be it very close. It stopped working although the red light was doing its thing.
Hard wired the cables to and from sensor board and fitted a new optocoupler chip u2.
Working now but I had ordered a new board set from Tangles in Australia ready for when it goes wrong again.
View attachment trim.82B47069-8101-4CC1-8EC0-05CC45F7B2D0.MOV
The coil is a bit beat up but it was sensing all be it very close. It stopped working although the red light was doing its thing.
Hard wired the cables to and from sensor board and fitted a new optocoupler chip u2.
Working now but I had ordered a new board set from Tangles in Australia ready for when it goes wrong again.
View attachment trim.82B47069-8101-4CC1-8EC0-05CC45F7B2D0.MOV
Attachments
Last edited:

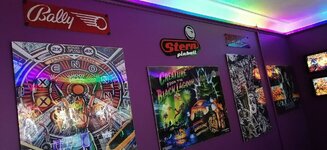

External pin room wall, had spare TAF and TZ glass and translites. Thought about making a backlight box but this will do
I just bought a huge amount of rubbers in every size which works out expensive to start but in the long run vastly cheaper than pre made sets. This is only cost effective if you have a larger lineup or a regular turnover of pins to shop out.
If I was sent a kit with missing rubbers id contact them so the next customer doesn’t have the same problem and I’m sure they would forward on FOC
OP
OP
I would be more shocked if a rubber kit was actually correct!
Decided to mess about with the head on Lucky Strike next. I've removed the board from the head for ease of access to the mechs and starting with the score reels. It's been ages since I worked on an EM so quite looking forward to it
OP
OP
A couple of fixes on Rick & Morty today. The plastic hinge that allows the UFO to move up and down snapped on my machine. There's been quite a few reports of this on pinside. Spooky sent me 3 new plastic pieces ( that instils confidence!
) and a new shorter lift rod ( so the UFO lifts up less hopefully fixing the broken hinge problem )
I rebuilt the house that looked like Stevie Wonder had put it together. It's just a folded piece of plastic screwed to some 3d printed roof parts. I had to reposition a few of the screws to straighten the whole thing up. I should have taken a before photo but it definitely wouldn't have passed building regs
Added a post to a hard to reach spot under the house where a ball would sometimes get stuck.
Added some insulators to the back of optos in the ship area where they were very close to a ball guide. Also one of those guide bars had worked loose and kept lifting so fixed it in with Epoxy.
Meeseeks are happy now, except one of them!
To finish off on R&M I waxed the playfield while it was apart, what a mistake that was! it's barely playable now! I think I'll throw some dirt back on.
I had to replace a flipper coil stop on GOTG which was falling apart. Apparently this is very common on Sterns but it's honestly the first time it's happened on one of mine.
) and a new shorter lift rod ( so the UFO lifts up less hopefully fixing the broken hinge problem )I rebuilt the house that looked like Stevie Wonder had put it together. It's just a folded piece of plastic screwed to some 3d printed roof parts. I had to reposition a few of the screws to straighten the whole thing up. I should have taken a before photo but it definitely wouldn't have passed building regs
Added a post to a hard to reach spot under the house where a ball would sometimes get stuck.
Added some insulators to the back of optos in the ship area where they were very close to a ball guide. Also one of those guide bars had worked loose and kept lifting so fixed it in with Epoxy.
Meeseeks are happy now, except one of them!
To finish off on R&M I waxed the playfield while it was apart, what a mistake that was! it's barely playable now! I think I'll throw some dirt back on.
I had to replace a flipper coil stop on GOTG which was falling apart. Apparently this is very common on Sterns but it's honestly the first time it's happened on one of mine.
Backboard finally arrived from Russia....
Thought I would give the back board a spruce up
Thought I would give the back board a spruce up
Been getting busy on Pinbot. Absolutely loving this game.
Replaced toasty transistor to fix drop targets resetting.
Ripped out some bodge wiring and ikea leds!!
Replaced mains cord and line filter to eliminate the light fitting
.
Added the inline fuses for the rectifiers.
And finally replaced the plunger barrel spring and sleeve. Nice smooth plunge now.
she’s a beaut.
Replaced toasty transistor to fix drop targets resetting.
Ripped out some bodge wiring and ikea leds!!
Replaced mains cord and line filter to eliminate the light fitting
.Added the inline fuses for the rectifiers.
And finally replaced the plunger barrel spring and sleeve. Nice smooth plunge now.
she’s a beaut.
Attachments
D
Deleted member 2463
a ceiling rose? FFS! who are these muppets? probably that twat Backhouse.
Three of four score reels stripped down, cleaned, lubed and rebuilt along with the reel cage. Just the 10k point reel to do which is a bit different to the others as it has the small PCB on it. After that I'll have a look at the stepper units. I can already see that the springs on those have been shortened, probably to keep them moving when they started to gum up so I expect I'll need to replace them. Something quite therapeutic about working on an EM game and a nice change from the SS stuff
Today I setup up my GOTGLE at my nieces house.
Pinball is too good to keep to yourself and sometimes you just have to share the love.
Her husband loves playing this everytime they visit but due to the NE being on lockdown that’s not happening so I’ll take the love to him where he can get a real feel for it over the next few months.
Pinball is too good to keep to yourself and sometimes you just have to share the love.
Her husband loves playing this everytime they visit but due to the NE being on lockdown that’s not happening so I’ll take the love to him where he can get a real feel for it over the next few months.
xianek
Site Supporter
OP
OP
Col's awesome signs in place ....
....
D
Deleted member 2463
Practise run for AIQ
Guardians before and after
Sent from my iPhone using Tapatalk Pro
Guardians before and after
Sent from my iPhone using Tapatalk Pro
Very nice
Been a while- but got siderails off AFM
a few weeks back.. used Hair dryer and pallet knife. They were stuck in with some really strong, Wide tape..
View attachment IMG_5349.MOV
Did take some of the decals off with the tape.
Used a blade and straight edge, scored just above the Siderail line, Peeled off all
The remaining decal and used goo gone to take off all the residue.
a few weeks back.. used Hair dryer and pallet knife. They were stuck in with some really strong, Wide tape..
View attachment IMG_5349.MOV
Did take some of the decals off with the tape.
Used a blade and straight edge, scored just above the Siderail line, Peeled off all
The remaining decal and used goo gone to take off all the residue.
Why does nobody ever straighten their Plantir target when it’s a 30 sec job? - my OCD doesn’t approve!
Sent from my iPhone using Tapatalk
Cab redecal completion
Mirror sideblades added too.....
Mirror sideblades added too.....
Under the playfield the switch is held together by two screws (in Bally/Williams these were rivets). Loosen - straighten - tighten!
Sent from my iPad using Tapatalk
Paragon getting some new makeup
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
The lengths some people go to.... to squeezing in one more game...
Stern backbox on new games 71cm wide,B/W & DP 73cm Wide, JJP 74 cm wide
Have taken heated off wall, moved CFBL down as far as it would go.
Still not enough space, so.. CTBL forward and TBL tucked slightly behind, giving 76cm to fit AFM in...
Now where to put G&R when it arrives...
Yes place is looking like a
has gone off
Stern backbox on new games 71cm wide,B/W & DP 73cm Wide, JJP 74 cm wide
Have taken heated off wall, moved CFBL down as far as it would go.
Still not enough space, so.. CTBL forward and TBL tucked slightly behind, giving 76cm to fit AFM in...
Now where to put G&R when it arrives...
Yes place is looking like a
has gone off
