Node Board 9 Issues
- Thread starter todler
- Start date
FantasticNew board arrived today and just fitted. I now have a fully operational GOTG
So just to clarify you had a faulty node board, replaced it with another node board which turned out to be faulty, and finally got a third one which worked?
I bought a spare recently on here to keep handy but haven't tried it. Making me a little nervous if there's a bad batch of them.
I bought a spare recently on here to keep handy but haven't tried it. Making me a little nervous if there's a bad batch of them.
Silverpaolo
Site Supporter
Your node board is the newer version which I sent todler this last time and that works which is great. So you shouldn’t have any problem
Both node boards I’ve sent todler came from pinballife which basically they say come tested working and due to the nature of the boards offer no warranty once fitted which isn’t great but I get why in case the fault that blew the first board isn’t rectified and then on to blow the second
Stern also said there was a batch not programmed correctly so after the distributor tested them they “lost” the program (or something like that). Again no warranty and how do you prove? I will go back and let them know another board works correctly.
Thanks to the original poster for this thread
I'm also having a node 9 board issue on my IM. Does anyone know if replacements are readily available in the UK? Cheers.
I'm also having a node 9 board issue on my IM. Does anyone know if replacements are readily available in the UK? Cheers.
These should all get to you within a week.
retroarcadespecialists.co.uk
www.pinball.co.uk

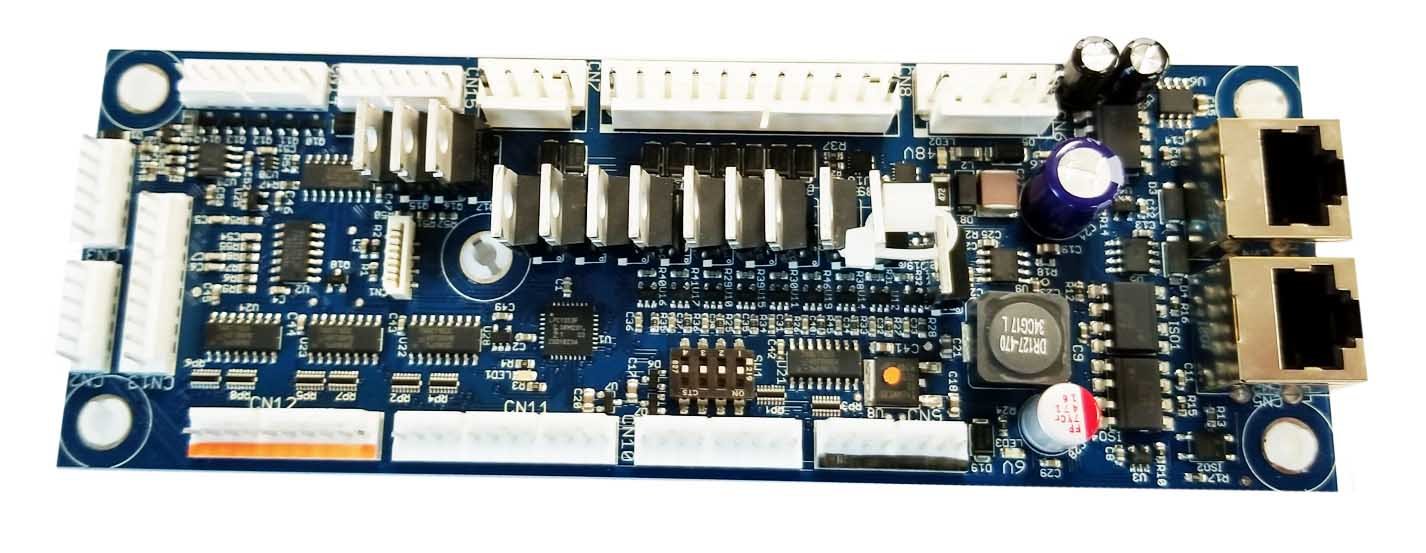

Stern SPIKE & SPIKE 2 Node Board - 520-7017-72
Stern SPIKE and SPIKE 2 node board. Replaces 520-6985-72. Stern #520-7017-72,199-7017-00A. PLEASE READ: If your machine's node board is not working, be sure to fix the issue that caused your node board to fail before installing a replacement, or the newly installed node board will immediately...
retroarcadespecialists.co.uk
520-7017-72 Stern Node Board (520-6985-72) - Pinball Heaven
Stern Pinball node board PCB 520-7017-72
www.pinball.co.uk
Stern SPIKE & SPIKE 2 Node Board - 520-7017-72
Stern SPIKE & SPIKE 2 Node Board for replacement with Stern #520-7017-72. Ensure machine's issues are fixed before installation.
www.pinballlife.com
Pinball heaven normally have some, retro might. Check that it's not a pin issue first. Is it showing undetectedThanks to the original poster for this thread
I'm also having a node 9 board issue on my IM. Does anyone know if replacements are readily available in the UK? Cheers.
Thanks for the links chaps.
I reseated cables and swapped the boards round, so it definitely looks like a failure.
I reseated cables and swapped the boards round, so it definitely looks like a failure.
Yep
Silverpaolo
Site Supporter
I’ve one
For Sale - Stern Spike 48 volt 3 amp 8 driver node board 520-7017-72 replaces 520-6985-72
Stern SPIKE 48 Volt 3 AMP 8 Driver Node Board for Pinball Machine 520-7017-72 / Replaces 520-6985-72 Brand new £160 inc postage 1 available
www.pinballinfo.com
Thanks to the original poster for this thread
I'm also having a node 9 board issue on my IM. Does anyone know if replacements are readily available in the UK? Cheers.
If red light on only (green light and yellow light off) i can repair. Cheaper than a new one
Urgh, my first node board failure (Star Wars Pro)
. Will lift the playfield tomorrow to have a proper look. I do have a spare.
How have people been getting on with repaired ones? New ones are £175 - £190 + postage.
. Will lift the playfield tomorrow to have a proper look. I do have a spare.How have people been getting on with repaired ones? New ones are £175 - £190 + postage.
Last edited:
Don't know, for me getting it repaired the quoted cost £130 by the time it posted a new one was £160 at the time so for £30 more for a new one was my choice. If it had been a massive difference repairing would be my first choice, I was able to sell my faulty board, so it wasn't a huge difference.Urgh, my first node board failure (Star Wars Pro)
How have people been getting on with repaired ones? New ones are £175 - £190.
View attachment 276389
In the past it was a 50 50 whether it could even be repaired, more experienced members could advise how it is now.
Can be repaired most likely but i don’t want to work for free so yeah it’s usually £100 plus vat and shipping (from me anyway) to repair one.Urgh, my first node board failure (Star Wars Pro)
How have people been getting on with repaired ones? New ones are £175 - £190 + postage.
View attachment 276389
Fixed a load and never had any back
Stern has lowered the prices of new ones though so it’s a very much throw away culture with them and that sucks!
Look at the LEDs on the board - if only the red one comes on then it's mostly likely the 6V regulator gone bust, as mentioned here: https://www.pinballinfo.com/community/threads/node-board-repair.55565/post-588485Urgh, my first node board failure (Star Wars Pro)
How have people been getting on with repaired ones? New ones are £175 - £190 + postage.
Pain in the butt to swap a new one in, but can be done with a hot air station.
I should also say if you try to do it first yourself, don’t send me it after you fail !!
I only accept virgin broken ones!
I only accept virgin broken ones!
Don't worry, I definitely won't be attempting any fixes myself!I should also say if you try to do it first yourself, don’t send me it after you fail !!
New board in and working
.
I've noticed Node 8 is missing the stabilisation fix. I'm guessing a small bit of foam will do in place of the official plastic spacer?
This is the new one.
.I've noticed Node 8 is missing the stabilisation fix. I'm guessing a small bit of foam will do in place of the official plastic spacer?
This is the new one.
Update - In an effort to size up a bit of foam on the faulty Node Board, I bent one of the pins on the diode so one of the pins has come up from the board. In an effort to try to prevent the issue I've actually caused the issueNew board in and working
I've noticed Node 8 is missing the stabilisation fix. I'm guessing a small bit of foam will do in place of the official plastic spacer?
View attachment 276429
This is the new one.
View attachment 276427
. Irony?I'm going to stay well away from the working Node 8 and take my chances with it holding up.
Someone told me it's shaker motors than can expedite this issue, and to remove the plastic spacers from underneath and use silicone ones that would minimise the vibration somewhat.
I was sent a link to the silicone ones, will try and dig it out.
I was sent a link to the silicone ones, will try and dig it out.
