Getaway HS2 Mods - New table questions
- Thread starter Goodwinsplace
- Start date
OP
OP
Goodwinsplace
Site Supporter
Some nice mods there. From what I can see:
-Black rails, did you get them powder coated?
- Helicopter, is it illuminated or move? If so how did you do it?
- Different traffic light and supercharger signs?
- Road and car leading into Donut
- Donut Heaven, I'm in the middle of 3d printing one, but mine has a smooth roof. Does it have additional lighting inside?
Anything else I've missed, they look great, would be interested to know what you've connected to animate or light up.
Looks great, thanks for sharing.
I have the exact same machine here in the factory - but I call it a "pinball machine" - I reserve my table for dinner.
OP
OP
Goodwinsplace
Site Supporter
That's nice. Well done.
I worked for a company that used to call them pin tables. Must be a UK thing.
Love playing this one in your line up Andy it’s just stunning to look at.
OP
OP
Goodwinsplace
Site Supporter
I think it's stuck with me since building a virtual machine first as a bit of fun and you load different 'tables' on them.
It must be? I also use the incorrect term for my motor vehicle, I normally refer to it as a car
I do know the siderails are in chrome as I helped Andy to fit them.
the helicopter blades used to turn but has stopped working so is now a ornament.
the previous owner who is a member on here did a great job on the playfield.
The homemade stadium lights really help the look.
It needs Speaker Lights! Just set mine up this morning.
Go on then Mike show us with a photo please, I’ve got 5 Williams
Go on then Mike show us with a photo please, I’ve got 5 Williams
Attachments
Here's a pic... Will post a vid shortly... Pretty happy!
Look forward to that one, I suppose you 3D printed the plastics for the lights to sit in ?
Andy is going to be on my case I’m sure lol
No [mention]Colywobbles [/mention] laser cuts them out of Perspex.
Between a us we are making kits available - check out the ad:
Sold - Speaker Lights mod - WiFi App controlled addressable LED's
A few weeks ago @Colywobbles posted a vid showing how he used my Feed Frenzy Power and LED controller board, to drive some cool custom speaker lights in his Simpson's Stern WhiteStar pinball machine (apparently he also has the plastics for Spike systems also). You can see his post here...
www.pinballinfo.com
A quick favour from a HS2 owner - can you send me a pic of what’s on Connector J132?
I have a red with white stripe wire that I think goes on it - not sure, or what pin. Thx
I have a red with white stripe wire that I think goes on it - not sure, or what pin. Thx

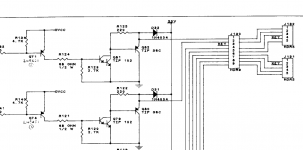

This is mine - nothing on that connector. The schematic shows it connected to a few drivers on the solenoid driver board but looks like unused? Certainly in my machine but I would happily be corrected.
I do have a thin red/grey wire at the top of the board on J106 - it 'looks' red/white at first glance?
You can see a thick red/white on the connector below it J107?
You can see a thick red/white on the connector below it J107?
Many thanks - that’s really helpful. I’ve got a bit of non standard wiring going on there I think. Will take a close look at what’s going where.
Thanks again
Thanks again
OP
OP
Goodwinsplace
Site Supporter
A nice easy mod for my Getaway.
I've not done the LEDs, where is the best place to get power to add some light inside the donut heaven mod?
I've not done the LEDs, where is the best place to get power to add some light inside the donut heaven mod?
The White LED that you mention in you vid is a GI light - which is an AC power source. Most LED’s will need a DC power source - unless they have a built in rectifier like the Comet GI LED’s do.
You can tap into the flasher (bigger bulb that sits near the upper right flipper), but you need to make sure the LED’s you use will be ok it the power rating from the flasher - you’ll very likely need a resistor to prevent blowing the LED. Obviously the LED will flash when the flasher flashes (if that makes sense?)
You can tap into the driver board in the backbox. Grabbing 5V or 12V from there is quite easy.
Shameless plug - but you could buy one of my LED driver boards - let you install individually addressable LED’s - and control them via WiFi
Sent from my iPhone using Tapatalk
You can tap into the flasher (bigger bulb that sits near the upper right flipper), but you need to make sure the LED’s you use will be ok it the power rating from the flasher - you’ll very likely need a resistor to prevent blowing the LED. Obviously the LED will flash when the flasher flashes (if that makes sense?)
You can tap into the driver board in the backbox. Grabbing 5V or 12V from there is quite easy.
Shameless plug - but you could buy one of my LED driver boards - let you install individually addressable LED’s - and control them via WiFi
Sent from my iPhone using Tapatalk
OP
OP
Goodwinsplace
Site Supporter
Thanks, interested in your LED driver boards can you send me info or post a link here? I was considering running an independent led setup with its own power but ideally wanted it to respond to the game.
What does GI stand for? There are a few of those which are throughout the table that are quite distracting. I'm guessing they haven't been swapped to LED for that reason.
Next mod is going to be Tilt!Audio when I get some spare time to build the board up.
GI means General Illumination... there are many lights that have a single control that generally illuminates the playfield and backbox.
My board was in the Classified Ads section - Parts For Sale... I just realise that section has gone!! No wonder they we're flying off the shelf!
I first mentioned it on this link: https://www.pinballinfo.com/community/threads/today-i-worked-on.39368/post-390663
There are a few left - £45 inc VAT and shipping. I have some strips of Individually addressable LED lights (38 lights per strip - which can be cut down to size with scissors). They are £8 extra when bought with the board.
@Colywobbles also used it to make a cool speaker light system - that post is here: https://www.pinballinfo.com/community/threads/today-i-worked-on.39368/post-395326
If you'd like to use the board to light your Doughnut Heaven and speaker lights (and anything else for that matter), you can buy a speaker light package for £75 (https://www.pinballinfo.com/communi...d-wifi-app-controlled-addressable-leds.49394/). You can add other lights in a "daisy chain" effect - to control your Speaker Lights and Doughnut Heaven. Hope all that makes sense?
My board was in the Classified Ads section - Parts For Sale... I just realise that section has gone!! No wonder they we're flying off the shelf!
I first mentioned it on this link: https://www.pinballinfo.com/community/threads/today-i-worked-on.39368/post-390663
There are a few left - £45 inc VAT and shipping. I have some strips of Individually addressable LED lights (38 lights per strip - which can be cut down to size with scissors). They are £8 extra when bought with the board.
@Colywobbles also used it to make a cool speaker light system - that post is here: https://www.pinballinfo.com/community/threads/today-i-worked-on.39368/post-395326
If you'd like to use the board to light your Doughnut Heaven and speaker lights (and anything else for that matter), you can buy a speaker light package for £75 (https://www.pinballinfo.com/communi...d-wifi-app-controlled-addressable-leds.49394/). You can add other lights in a "daisy chain" effect - to control your Speaker Lights and Doughnut Heaven. Hope all that makes sense?
