Found it! Wanted -Bally centaur cabinet flipper switch

[Adam Lee]

Does anyone have or know where I can buy a cab flipper switch for a Bally centaur ?

Thanks



[MadNat]

Does anyone have or know where I can buy a cab flipper switch for a Bally centaur ?

Thanks

Can you post a pic of what you need Adam?



[stevebm1]

if it's just an eos switch you are after,they are the same on any bally pin around that era



[Pinoffski]

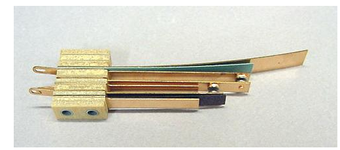

Flipper Switch (ASW-A10-41)

www.pinball.center

Switch - cabinet flipper Bally - ASW-A10-41 B-17838

Switch - cabinet flipper Bally - ASW-A10-41 B-17838

www.pinballshop.nl



[AlanJ]

this also works and is in uk

https://www.pinball.co.uk/spares-ac...-body-parts/flipper-cabinet-switch-sw-10a-48/



[David retro]

i Have one of these left

• ASW-A10-41

Classic Bally Flipper Switch ASW-A10-41

Classic Bally Flipper Switch Cabinet leaf switch for classic Bally games. Suitable replacement for classic Stern and Gottlieb. Bally #ASW-A10-41. Stern #SW-474. Gottlieb #B-17838.

retroarcadespecialists.co.uk



[Adam Lee]

Thanks for the responses, it looks to be a double leaf switch activating the lane change, odd it seems to have 5 lugs in total with a diode ? I found this switch but it does not have enough lugs SW-1010A-13 ?

Do you have to buy two switches and rebuild to suit ?

Appreciate your help



[Epotech]

To be clear an eos is brass contacts a flipper switch is tungsten to handle higher voltage.



[AlanJ]

I presume you are replacing because the flipper switch is worn out and causing issues?
The lane change switch is probably ok because it carries a small current compared to the flipper switch.

2 Options:
Buy the new flipper switch and then add in the existing lane change switch from the old switch stack.

Buy the new double switch and add a diode. The 5th tab is just a meeting point for the diode and the wire, you can dispense with that and just solder the wire to the end of the diode.

You currently have this:

It could be done like this with 4 tabs (bottom right); - You could also use the 5th tab off your old switch stack if you wanted?

Note I cannot tell from your photo which way round the diode is - but just ensure the banded end connects to the same wire as it does now.



[Adam Lee]

Many thanks, I have sourced a double leaf switch so should be able to sort , cheers



[David_Vi]

Just check the double leaf is two separate insulated leaf switches. Eg, that one you pictured is wrong, you'll be sending coil voltage down into the switch matrix and blow your board

I ordered two for my centaur which ended up being wrong, like the one pictured. I had to pull them apart and modify them like @AlanJ says.
