Found it! Support Arm Screw/Bolt for WPC95 machines

[s000m]

I can't seem to find the name for this part so if you know where I can buy it or if you have one spare I'd like to buy it.

This one despite the picture is pretty bent.

Its the bolt that goes through the cabinet and bolts the support arm to the side of the cab.



[strobey]

Carriage bolt.

Not to be confused with a Coach bolt which has a self-tapping thread and so is driven in from the bolt head, usually a hex.

The biggest problem you'll find is the originals are imperial threaded so if you're buying off the shelf get nuts too.

Also difficult to find black powedercoated versions. Mostly "BZP" (zinc plated), so you'll need to waft the heads with some black spray. Make sure surface is super clean... IPA or an alcohol wipe.

Hth!

Tim



[s000m]

Carriage bolt.

Not to be confused with a Coach bolt which has a self-tapping thread and so is driven in from the bolt head, usually a hex.

The biggest problem you'll find is the originals are imperial threaded so if you're buying off the shelf get nuts too.

Also difficult to find black powedercoated versions. Mostly "BZP" (zinc plated), so you'll need to waft the heads with some black spray. Make sure surface is super clean... IPA or an alcohol wipe.

Hth!

Tim

I think I just found it.

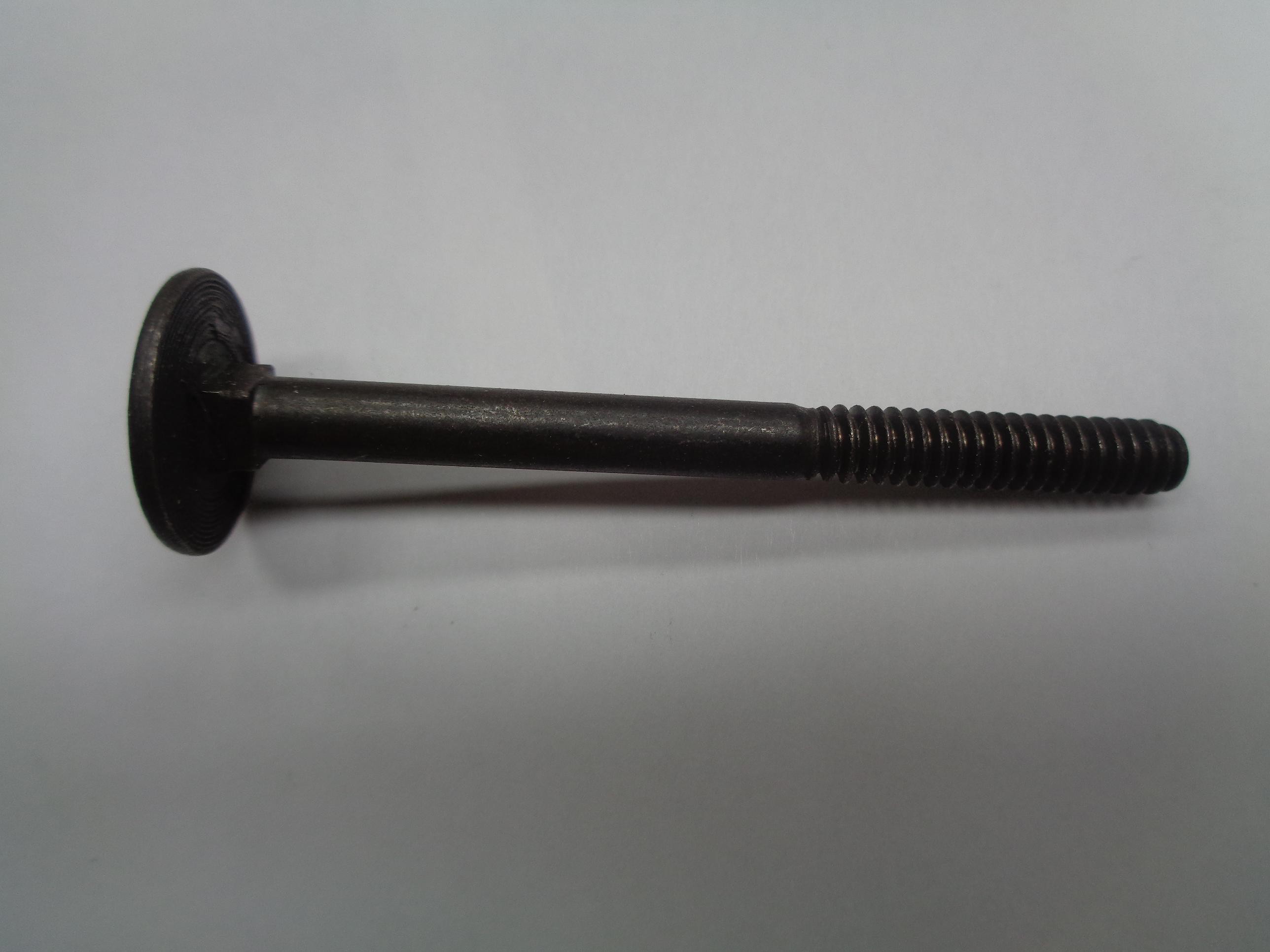

bolt 10-24 x 2 1/4 step (These have some Surface Rust)

blt 10-24 x 2 1/4 step<br /><br /><table border=0 cellpadding=2 class='details'> <tr> <td> <b>Length:</b> </td> <td>0.0 cm </td> </tr> <tr> <td> <b>Width:</b> </td> <td>0.0 cm

www.pinballspareparts.com.au

That look right?



[strobey]

I'm sure Pinball Heaven or Mania will stock them, but if you're buying from an ironmonger you just need to check shaft diameter and that they're similar length.

Importing from Aus I think is unnecessary



[replicas]

Pretty sure Andy at Pin Mainia has them , but ask him direct. I’d imagine it will be difficult to find on the site.



[s000m]

Pretty sure Andy at Pin Mainia has them , but ask him direct. I’d imagine it will be difficult to find on the site.

Checked he doesn't stock it. Doesn't appear on PBH either.

Pretty rare part tbh!



[Jagspete]

I’ve a bag of odd ones measure the length and diameter and I’ll check



[AlanJ]

i’ve got loadsa coach bolts too. measure length, diameter and head diameter



[s000m]

Thanks guys.



[AlanJ]

can’t find one that long in my used or new parts. sorry



[s000m]

can’t find one that long in my used or new parts. sorry

Thx for trying



[Dave Bishop]

I will take a look at what I have



[Jagspete]

Only 55mm long



[s000m]

Only 55mm long

Look to be the wrong diameter.

I've ordered some from France.
