Wanted Screws for securing Zaccaria head?
- Thread starter David_Vi
- Start date
i have longer bolts, 4":
https://www.ebay.co.uk/itm/133648360435 - measure to see if those will be long enough?
Can save you ebay fees and do £1 cheaper if you dont buy via ebay. ;-)
https://www.ebay.co.uk/itm/133648360435 - measure to see if those will be long enough?
Can save you ebay fees and do £1 cheaper if you dont buy via ebay. ;-)
Someone found me one to try in Space Shuttle recently and it does the job. I'll get that out and see if it's 3" or 4" and get back to you!
Don't wanna take locomotion to Pinfest without those bolts
An Italian machine may have metric threaded fasteners, rather than imperial as on u.s. ones.
I had some from B&Q for this purpose
Interesting, I guess if it's metric there might be some
They're just long bolts that fit through and tighten down. The nuts are designed to be hammered into wood I guess but the good thing is they allow you to get a grip on easily by hand. The other thing I've done before that's worth trying is just threading a long zip tie through there.
It's the giant washers I'd need also.
Really want the bolts as I will be removing the head for Pinfest and a big nudge can bring the head down with a dodgy latch

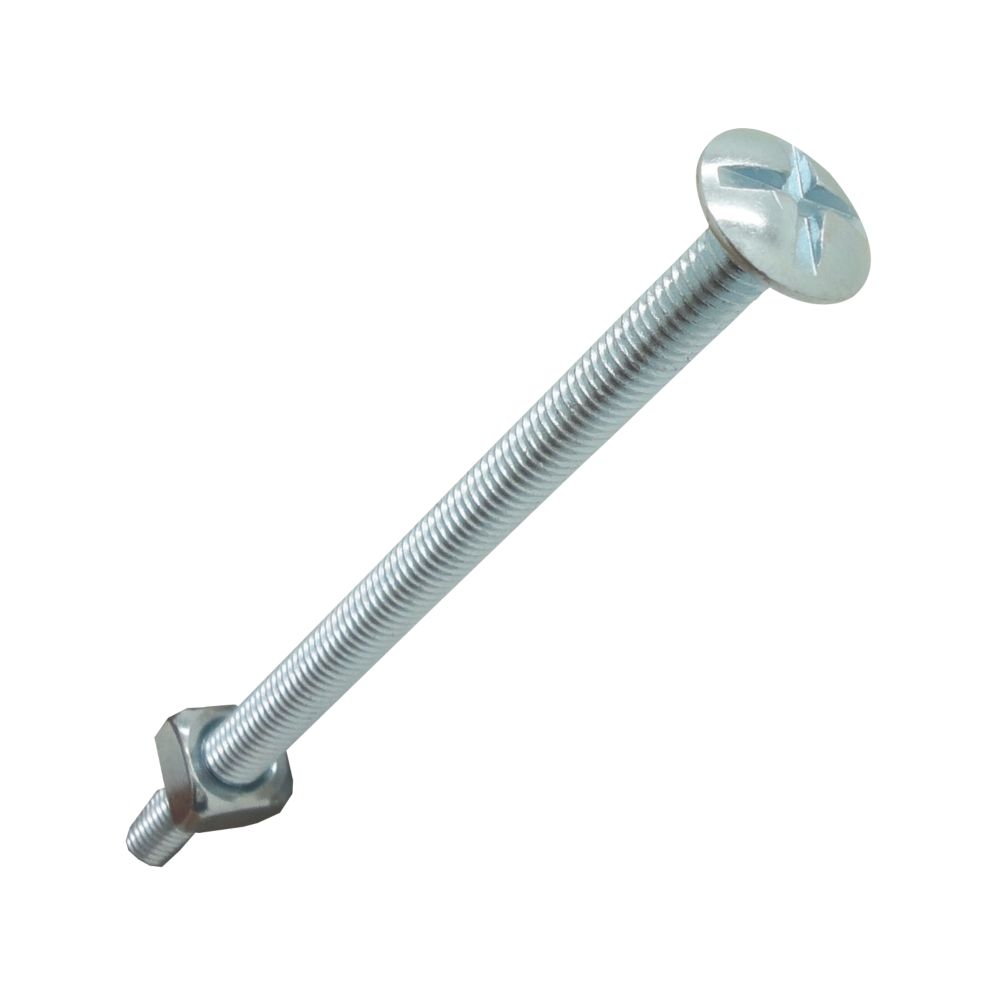

Easyfix Bright Zinc-Plated Roofing Bolts M6 x 100mm 10 Pack - Screwfix
Order online at Screwfix.com. Bright zinc-plated roofing bolts with truss head. Supplied with square nuts. FREE next day delivery available, free collection in 1 minute.

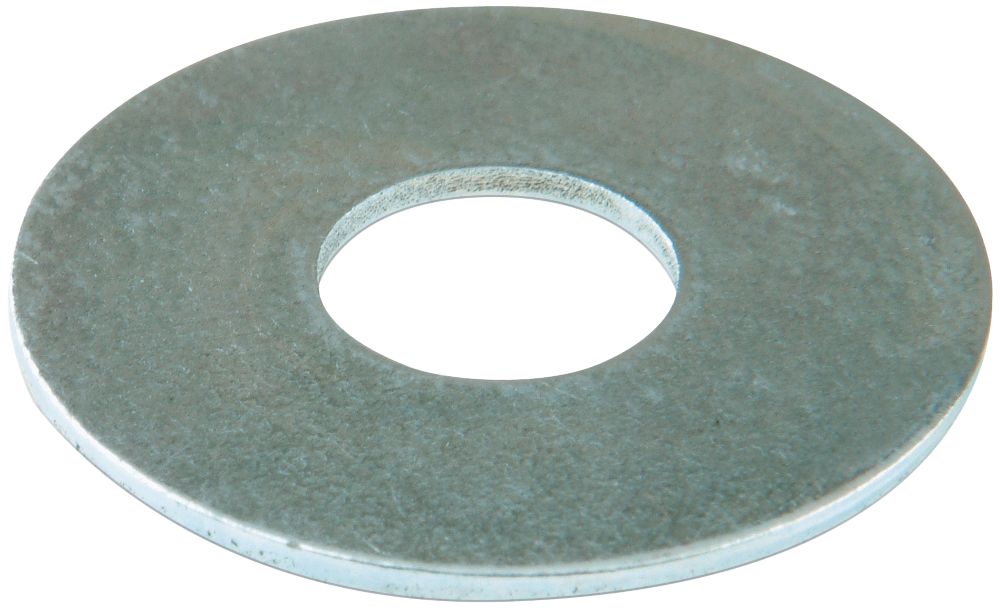

Easyfix Steel Large Flat Washers M8 x 2mm 100 Pack - Screwfix
Order online at Screwfix.com. BZP. For thin workpieces and sensitive surfaces. Suitable for metric screws. FREE next day delivery available, free collection in 1 minute.
simples
Easyfix Bright Zinc-Plated Roofing Bolts M6 x 100mm 10 Pack - Screwfix
Order online at Screwfix.com. Bright zinc-plated roofing bolts with truss head. Supplied with square nuts. FREE next day delivery available, free collection in 1 minute.www.screwfix.com
Easyfix Steel Large Flat Washers M8 x 2mm 100 Pack - Screwfix
Order online at Screwfix.com. BZP. For thin workpieces and sensitive surfaces. Suitable for metric screws. FREE next day delivery available, free collection in 1 minute.
simples
That's promising! Could do with a hex head though. At least I know the size now

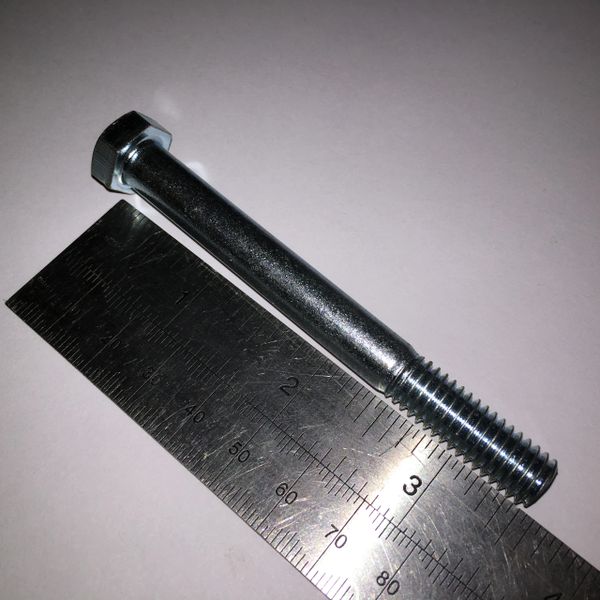

This is the one I'm using in Space shuttle. I don't think it's an actual Zac one though.
Attachments
Fubar
Registered
If you know the dimensions you need check out www.accu.co.uk
Hi David,
Sorry I forgot to get back to you about these bolts after Swavesey. They aren't metric and metric ones won't fit, they are 3/8" UNC thread the same as the leg bolts, but longer. The last ones I bought on ebay were the 3/8" by 3 1/2" Part Thread ones from here https://www.ebay.co.uk/itm/113187458295 at £6.55 for 4. The washers can be M10 metric ones and the last ones I bought on ebay were the M10 x 30mm x 1.5mm ones from here at £2.51 for 10 https://www.ebay.co.uk/itm/253719962048
Hope that helps.
Keith
Sorry I forgot to get back to you about these bolts after Swavesey. They aren't metric and metric ones won't fit, they are 3/8" UNC thread the same as the leg bolts, but longer. The last ones I bought on ebay were the 3/8" by 3 1/2" Part Thread ones from here https://www.ebay.co.uk/itm/113187458295 at £6.55 for 4. The washers can be M10 metric ones and the last ones I bought on ebay were the M10 x 30mm x 1.5mm ones from here at £2.51 for 10 https://www.ebay.co.uk/itm/253719962048
Hope that helps.
Keith
Back Box Bolt 3/8-16 x 3-1/2" pl-hwh 4322-01113-56
Back Box Bolt 3/8-16 x 3-1/2" pl-hwh 4322-01113-56
pinparts.co.uk
