Connector identification...

[Paul]

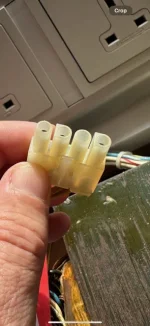

Anyone any idea what the connector type is that mates with this please (Power board on a system 11B)..



Thanks!



[Asiapinball]

0039036044 | DigiKey Electronics

Order today, ships today. 0039036044 – 4 Rectangular Connectors - Housings Receptacle Natural 0.264" (6.70mm) from Molex. Pricing and Availability on millions of electronic components from Digi-Key Electronics.

www.digikey.co.uk

I believe they are molex 3191 series part number 19091049 and 19092049. Check the spacing between centre of each pin. These are 6.7mm. I need one for my Diner and worked out this may be them but never got around to ordering so can't be sure.



[Asiapinball]

2-12 Pin/Way Molex 3191 Connector Kit .093"/6.7mm Pitch Plug Socket & Terminals | eBay

Quantity Selection: 1/5/10 Set (Menu options) Package minimum includes 1 SET: 1 x Male Connector Housing 1 x Female Connector Housing 2 x Male Terminal 2 x Female Terminal Or 1 x Male Connector Housing 1 x Female Connector Housing 3 x Male Terminal 3 x Female Terminal Or 1 x Male...

www.ebay.co.uk

Better pic here butt you should probably buy real molex.



[Asiapinball]

10191046 / 10192046 also OK.



[Paul]

ahha.. found them!!

https://www.mouser.co.uk/ProductDetail/Molex/39-03-6044?qs=dywjZ18jqCIV%252B%2FPWlU4OrQ%3D%3D

no stock for a few days, however backorderable

Thanks @Asiapinball - let me know if you still need one and i'll tag an additional one onto my order



[Asiapinball]

It's OK I need.to order various connectors so will put an order in myself.
